Genie Boom Lift
MRT Self Propelled Curved Arm Lifting Platform, Diesel engine type, DC motor type or battery power drive can be selected.The lifting arm has two or three sections, and the lifting height ranges from 10 meters to 32 meters. All models travel at full height, extend and lift with curved arms, and rotate the turntable 360°.These compact industrial design chassis, excellent in-situ zero tail swing rotation ability make MRT Self Propelled Curved Arm Lifting Platform your ideal tool for high-altitude operations.
Genie Boom Lift
MRT Self Propelled Curved Arm Lifting Platform, Diesel engine type, DC motor type or battery power drive can be selected.The lifting arm has two or three sections, and the lifting height ranges from 10 meters to 32 meters. All models travel at full height, extend and lift with curved arms, and rotate the turntable 360°.These compact industrial design chassis, excellent in-situ zero tail swing rotation ability make MRT Self Propelled Curved Arm Lifting Platform your ideal tool for high-altitude operations.
|
Product name |
genie boom lift |
|
Brand |
MRT |
|
Applicable Industries |
Maintenance, installation, construction and other high-altitude operations |
|
Lift Drive / Actuation |
Diesel engine type or DC motor type or battery power drive |
|
Lifting speed |
6-9m/min |
|
Style |
customized |
|
Certificate |
CE ISO |
|
Voltage |
220V/380V/customization |
|
Accept OEM and customization |
|
genie boom lift model selection
|
Type |
Lifting height (M) |
Equipment Load (Kg) |
Table Size (mm) |
Maximum dimension (mm) |
Self weight (Kg) |
|
MRT-QB0.2-10 |
10 |
200 |
1200*600 |
5200*1650*2350 |
5100 |
|
MRT-QB-0.2-12 |
12 |
200 |
1200*600 |
6200*1780*2350 |
6100 |
|
MRT-QB-0.2-14 |
14 |
200 |
1200*600 |
6900*1780*2350 |
6900 |
|
MRT-QB-0.2-16 |
16 |
200 |
1880*780 |
7100*2040*2200 |
7300 |
|
MRT-QB-0.2-18 |
18 |
200 |
1880*780 |
8200*2400*2450 |
9000 |
|
MRT-QB-0.2-20 |
20 |
200 |
1880*780 |
9100*2400*2450 |
10600 |

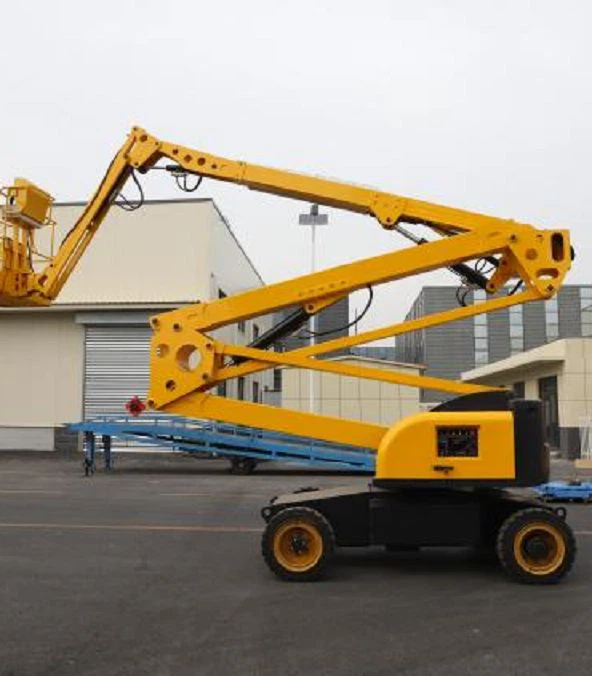

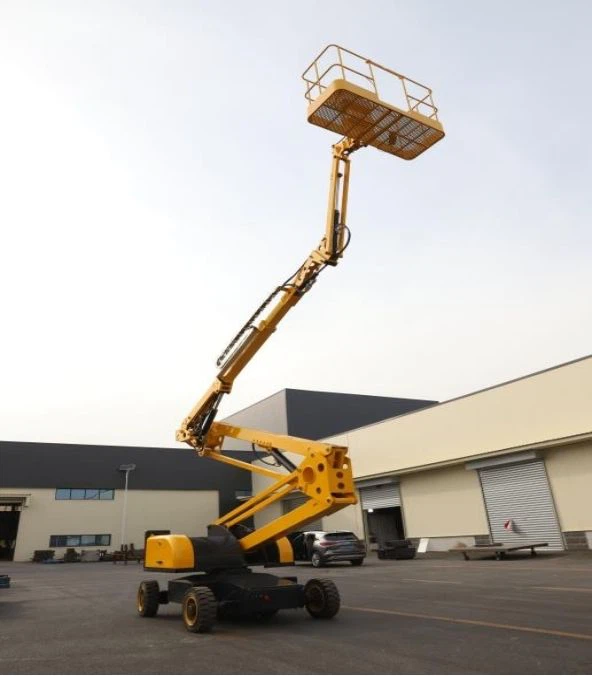

Product Image

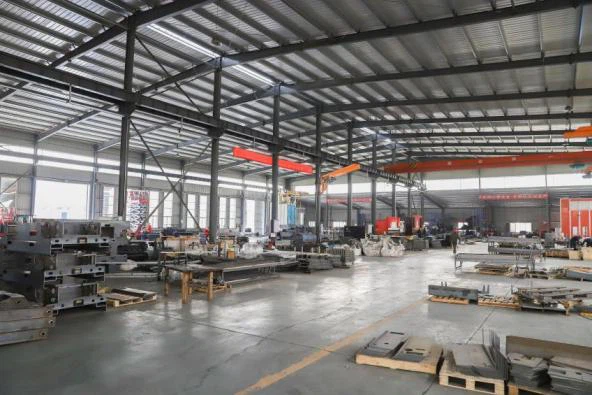

Production workshop
Honor certificate
FAQ
