Electric Sscissor Lift Platform
MRT Mobile scissor lifting platform series products, with flexible movement, smooth lifting and lowering, easy to operate, large load capacity and other characteristics. There are various ways to move, such as manually moving, manually assisted moving, self-propelled, rail electric moving, etc. It is mainly applicable to industrial and mining workshops, enterprises, stations, wharves, buildings, exhibition halls, and other off-air workplaces.
Electric Sscissor Lift Platform
MRT Mobile scissor lifting platform series products, with flexible movement, smooth lifting and lowering, easy to operate, large load capacity and other characteristics. There are various ways to move, such as manually moving, manually assisted moving, self-propelled, rail electric moving, etc. It is mainly applicable to industrial and mining workshops, enterprises, stations, wharves, buildings, exhibition halls, and other off-air workplaces.
|
Product name |
electric scissor lift platform |
|
Brand |
MRT |
|
Applicable Industries |
Building Material Shops, Food & Beverage Factory, Food Shop, Food & Beverage Shops |
|
Lift Drive / Actuation |
Electric Motor |
|
Lifting speed |
6-9m/min |
|
Style |
customized |
|
Certificate |
CE ISO |
|
Voltage |
220V/380V/customization |
|
Accept OEM and customization |
|
electric scissor lift platform model selection
|
Model Number |
MRT-SS6 |
MRT-SS8 |
MRT-SS10 |
MRT-SS12 |
MRT-SS14 |
|
Max Working Height (m) |
8 |
10 |
12 |
13.8 |
15.7 |
|
Max Platform Height (m) |
6 |
8 |
10 |
11.8 |
13.7 |
|
Platform Size (m) |
2.27×1.12×1.13 |
2.27×1.12×1.13 |
2.27×1.12×1.13 |
2.27×1.12×1.13 |
2.64×1.12×1.13 |
|
Length/Load of Extended Platform |
0.9m/113kg |
0.9m/113kg |
0.9m/113kg |
0.9m/113kg |
0.9m/113kg |
|
Length-Folded (m) |
2.43 |
2.43 |
2.43 |
2.43 |
2.8 |
|
Width-Folded (m) |
1.15 |
1.15 |
1.15 |
1.15 |
1.39 |
|
Height-Folded (m) |
1.71 |
1.85 |
1.97 |
2.10 |
2.10 |
|
Rated Working Load (kg) |
500 |
450 |
320 |
320 |
227 |
|
Travel Speed -Folded (km/h) |
4 |
4 |
4 |
4 |
3.5 |
|
Travel Speed -Raised (km/h) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
|
Battery |
4×6V/225ah |
4×6V/225ah |
4×6V/240ah |
4x12V/300ah |
4x12V/300ah |
|
Weight (kg) |
2060 |
2190 |
2430 |
2900 |
3400 |
|
Accept OEM and customization. |
|||||
Product feature
The electric scissor lift platform has an automatic walking function, an integrated design, and a built-in battery power supply to meet various working conditions. It does not require external power supply or external power traction.
The walking and steering of the electric scissor lift platform can be completed by only one person. The operator only needs to master the control handle in front of the equipment to complete the forward, backward, steering, fast and slow walking, up and down movements of the equipment.

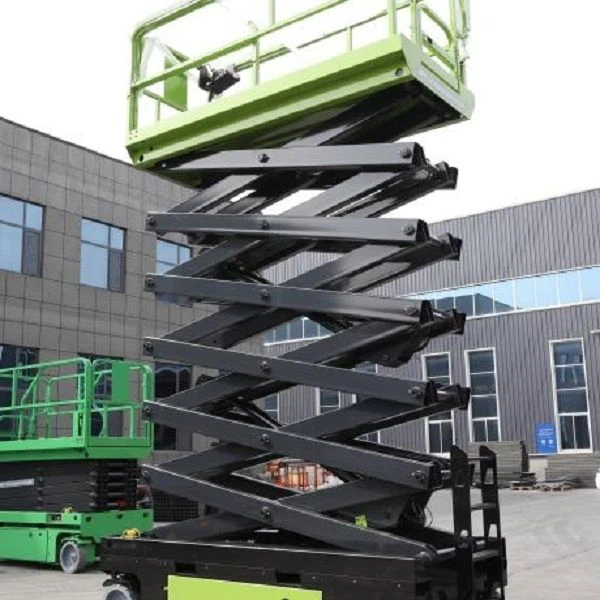

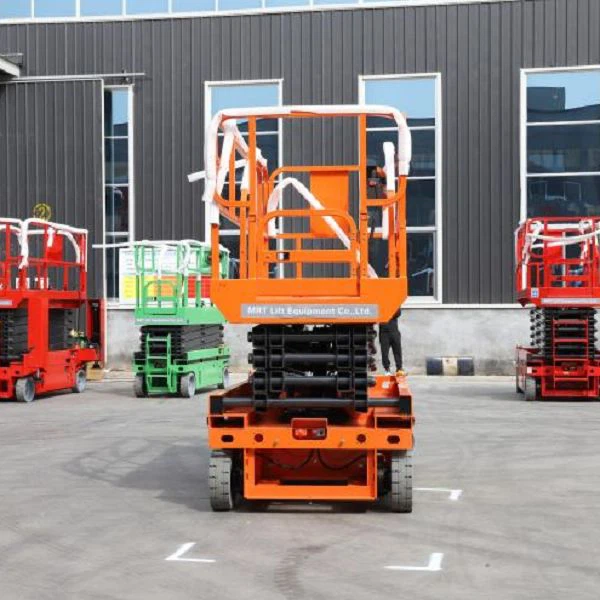

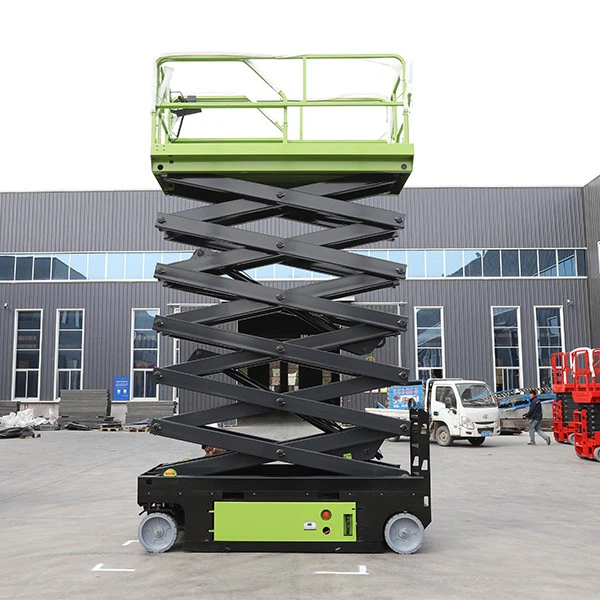

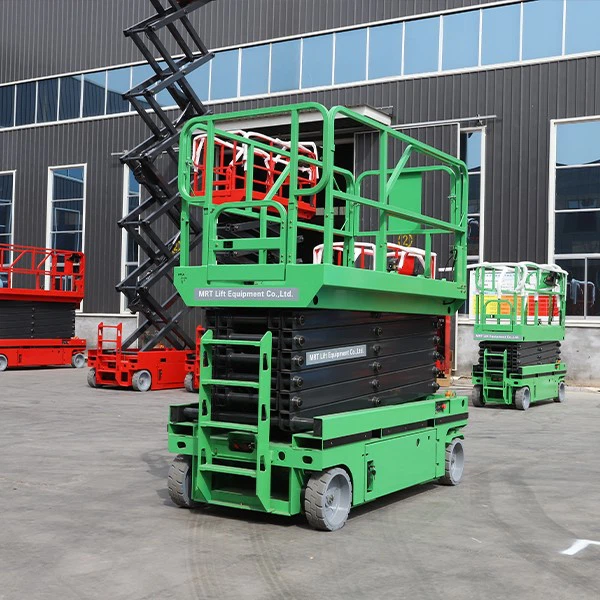

Product Image
Product detail presentation

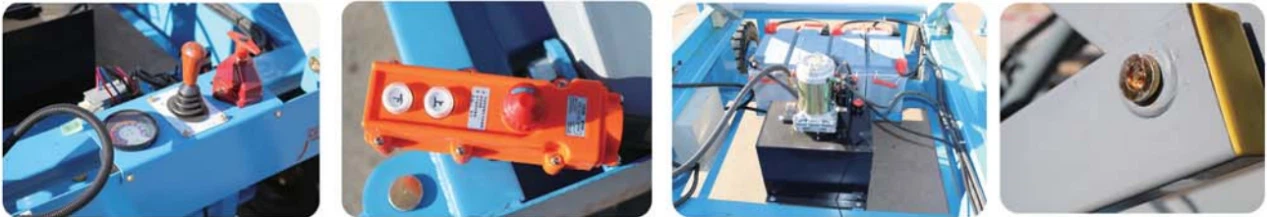

Battery switch Conrtol handle Pumping station system Pivot pin
Safety barrier Drawbar Tire Outrigger

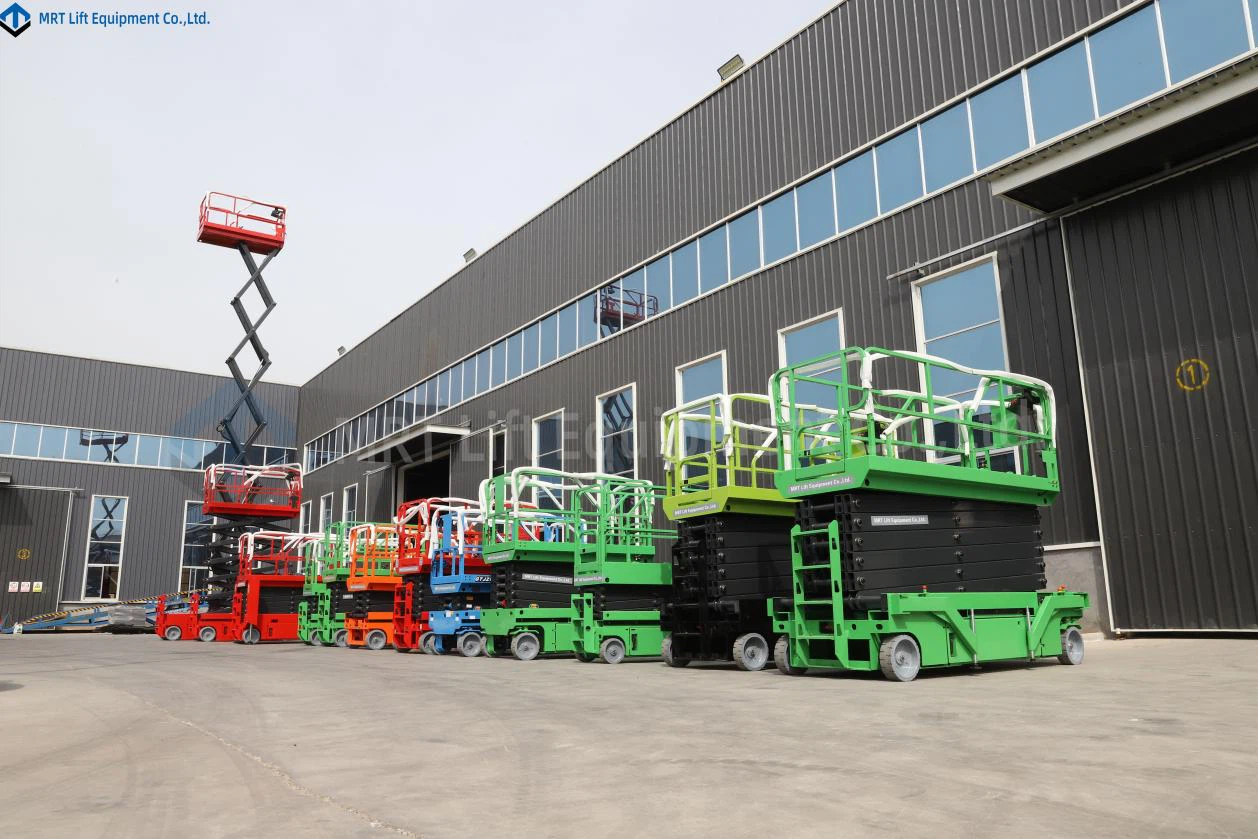

Production workshop
Honor certificate
FAQ
