Hydraulic Scissor Lift Platform
The hydraulic scissor lift platform is flexible in movement, easy to operate, saves labor costs, time, and energy, making high-altitude operations more convenient and faster. It is an ideal high-altitude operation equipment for modern enterprises to produce efficiently and safely.
Hydraulic Scissor Lift Platform
The hydraulic scissor lift platform is flexible in movement, easy to operate, saves labor costs, time, and energy, making high-altitude operations more convenient and faster. It is an ideal high-altitude operation equipment for modern enterprises to produce efficiently and safely.
MRT Mobile scissor lifting platform series products, with flexible movement, smooth lifting and lowering, easy to operate, large load capacity and other characteristics. There are various ways to move, such as manually moving, manually assisted moving, self-propelled, rail electric moving, etc. It is mainly applicable to industrial and mining workshops, enterprises, stations, wharves, buildings, exhibition halls, and other off-air workplaces.
|
Product name |
hydraulic scissor lift platform |
|
Brand |
MRT |
|
Applicable Industries |
Building Material Shops, Food & Beverage Factory, Food Shop, Food & Beverage Shops |
|
Lift Drive / Actuation |
Electric Motor |
|
Lifting speed |
6-9m/min |
|
Style |
customized |
|
Certificate |
CE ISO |
|
Voltage |
220V/380V/customization |
|
Accept OEM and customization |
|
ydraulic scissor lift platform model selection
|
Model Number |
MRT-SS6 |
MRT-SS8 |
MRT-SS10 |
MRT-SS12 |
MRT-SS14 |
|
Max Working Height (m) |
8 |
10 |
12 |
13.8 |
15.7 |
|
Max Platform Height (m) |
6 |
8 |
10 |
11.8 |
13.7 |
|
Platform Size (m) |
2.27×1.12×1.13 |
2.27×1.12×1.13 |
2.27×1.12×1.13 |
2.27×1.12×1.13 |
2.64×1.12×1.13 |
|
Length/Load of Extended Platform |
0.9m/113kg |
0.9m/113kg |
0.9m/113kg |
0.9m/113kg |
0.9m/113kg |
|
Length-Folded (m) |
2.43 |
2.43 |
2.43 |
2.43 |
2.8 |
|
Width-Folded (m) |
1.15 |
1.15 |
1.15 |
1.15 |
1.39 |
|
Height-Folded (m) |
1.71 |
1.85 |
1.97 |
2.10 |
2.10 |
|
Rated Working Load (kg) |
500 |
450 |
320 |
320 |
227 |
|
Travel Speed -Folded (km/h) |
4 |
4 |
4 |
4 |
3.5 |
|
Travel Speed -Raised (km/h) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
|
Battery |
4×6V/225ah |
4×6V/225ah |
4×6V/240ah |
4x12V/300ah |
4x12V/300ah |
|
Weight (kg) |
2060 |
2190 |
2430 |
2900 |
3400 |
|
Accept OEM and customization. |
|||||

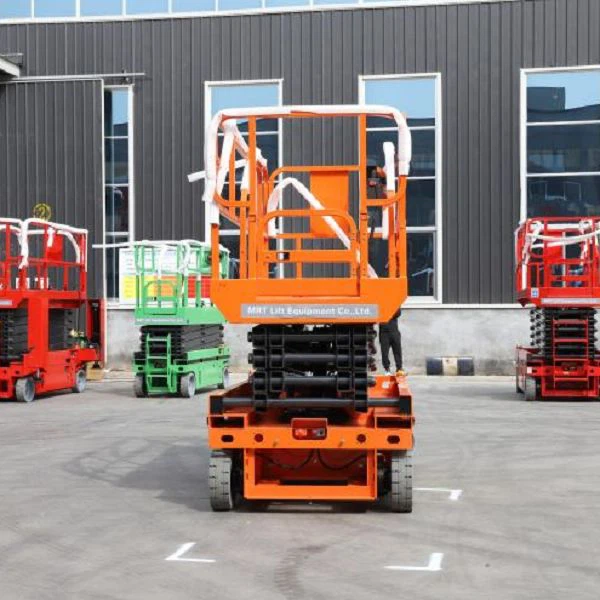

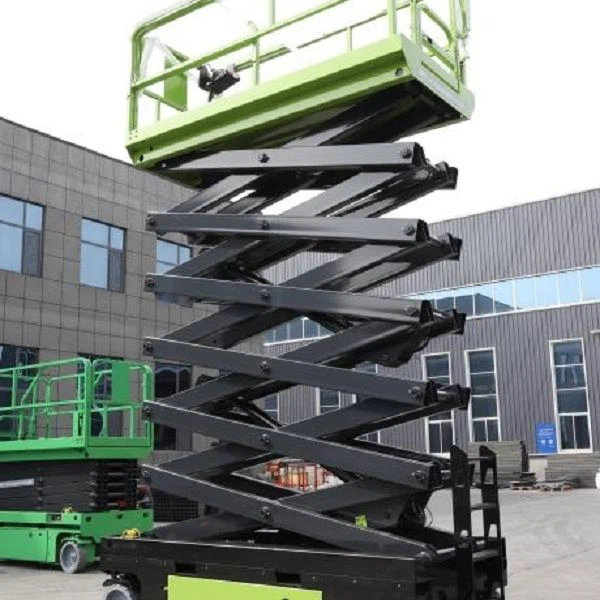

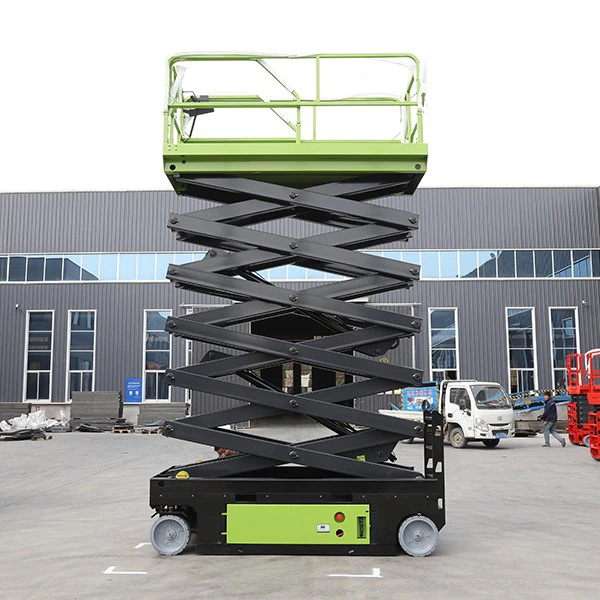

Product Image

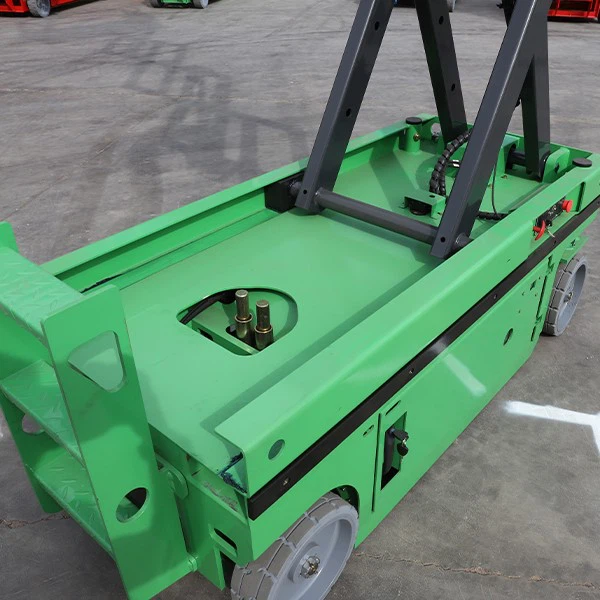

Product detail presentation

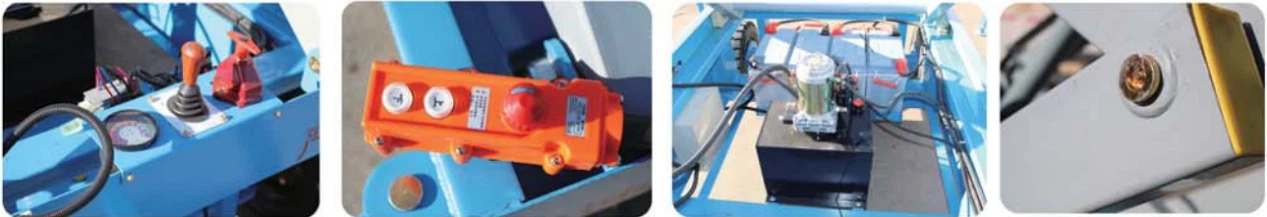

Battery switch Conrtol handle Pumping station system Pivot pin

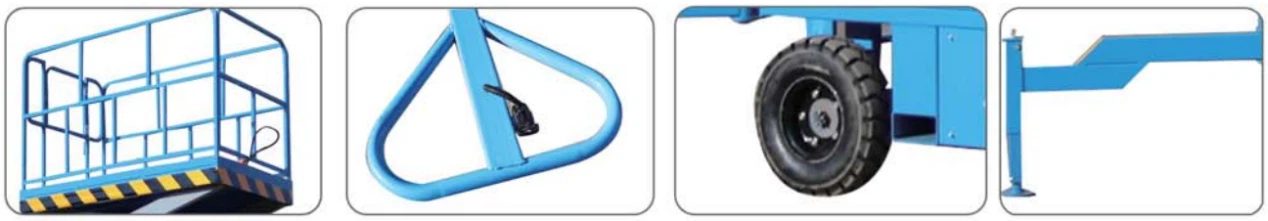

Safety barrier Drawbar Tire Outrigger

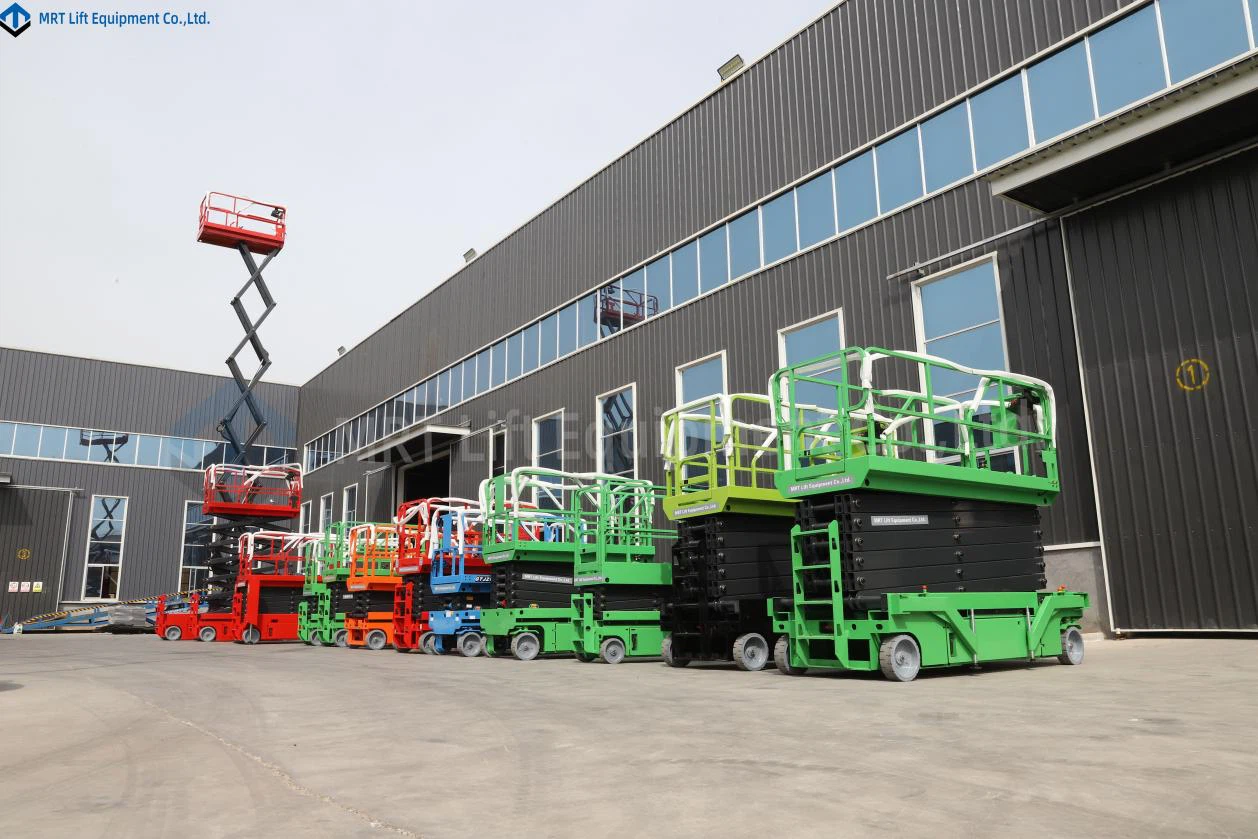

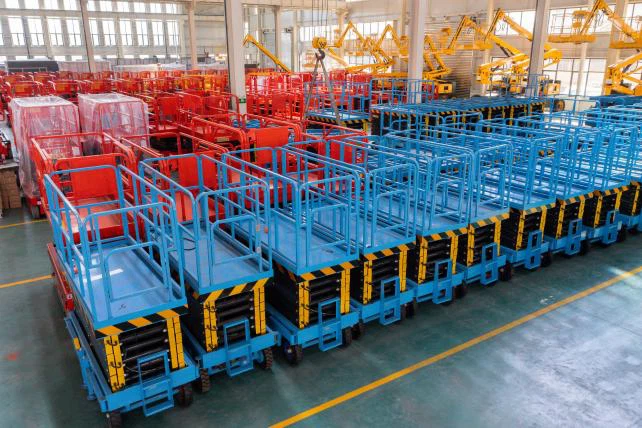

Production workshop
Honor certificate
