Self Propelled Scissor Lift
MRT mobile scissor lifting platform, scissor lifting structure made of Shanghai Baosteel manganese steel rectangular tube, hydraulic system accessories and electrical accessories are used in domestic and foreign famous brands, with high safety factor. MRT products are protected by double limit switches, explosion-proof device to prevent rupture of the hydraulic pipeline, equipped with a leakage protection device, equipped with a safety device to prevent overloading of lifting platforms (lifts), and an emergency descending device in the event of a power failure. MRT products have a variety of power to choose from, single-phase 220v AC power supply, three-phase 380v AC power supply, DC 12v (24v, 36v, 48v, 60v), AC and DC dual-use or diesel engine.
Self Propelled Scissor Lift
MRT mobile scissor lifting platform, scissor lifting structure made of Shanghai Baosteel manganese steel rectangular tube, hydraulic system accessories and electrical accessories are used in domestic and foreign famous brands, with high safety factor. MRT products are protected by double limit switches, explosion-proof device to prevent rupture of the hydraulic pipeline, equipped with a leakage protection device, equipped with a safety device to prevent overloading of lifting platforms (lifts), and an emergency descending device in the event of a power failure. MRT products have a variety of power to choose from, single-phase 220v AC power supply, three-phase 380v AC power supply, DC 12v (24v, 36v, 48v, 60v), AC and DC dual-use or diesel engine.
|
Product name |
self propelled scissor lift |
|
Brand |
MRT |
|
Applicable Industries |
Building Material Shops, Food & Beverage Factory, Food Shop, Food & Beverage Shops |
|
Lift Drive / Actuation |
Electric Motor |
|
Lifting speed |
6-9m/min |
|
Style |
customized |
|
Certificate |
CE ISO |
|
Voltage |
220V/380V/customization |
|
Accept OEM and customization |
|
Self-mobile scissor lift model selection
|
Model Number |
MRT-SS6 |
MRT-SS8 |
MRT-SS10 |
MRT-SS12 |
MRT-SS14 |
|
Max Working Height (m) |
8 |
10 |
12 |
13.8 |
15.7 |
|
Max Platform Height (m) |
6 |
8 |
10 |
11.8 |
13.7 |
|
Platform Size (m) |
2.27×1.12×1.13 |
2.27×1.12×1.13 |
2.27×1.12×1.13 |
2.27×1.12×1.13 |
2.64×1.12×1.13 |
|
Length/Load of Extended Platform |
0.9m/113kg |
0.9m/113kg |
0.9m/113kg |
0.9m/113kg |
0.9m/113kg |
|
Length-Folded (m) |
2.43 |
2.43 |
2.43 |
2.43 |
2.8 |
|
Width-Folded (m) |
1.15 |
1.15 |
1.15 |
1.15 |
1.39 |
|
Height-Folded (m) |
1.71 |
1.85 |
1.97 |
2.10 |
2.10 |
|
Rated Working Load (kg) |
500 |
450 |
320 |
320 |
227 |
|
Travel Speed -Folded (km/h) |
4 |
4 |
4 |
4 |
3.5 |
|
Travel Speed -Raised (km/h) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
|
Battery |
4×6V/225ah |
4×6V/225ah |
4×6V/240ah |
4x12V/300ah |
4x12V/300ah |
|
Weight (kg) |
2060 |
2190 |
2430 |
2900 |
3400 |
|
Accept OEM and customization. |
|||||

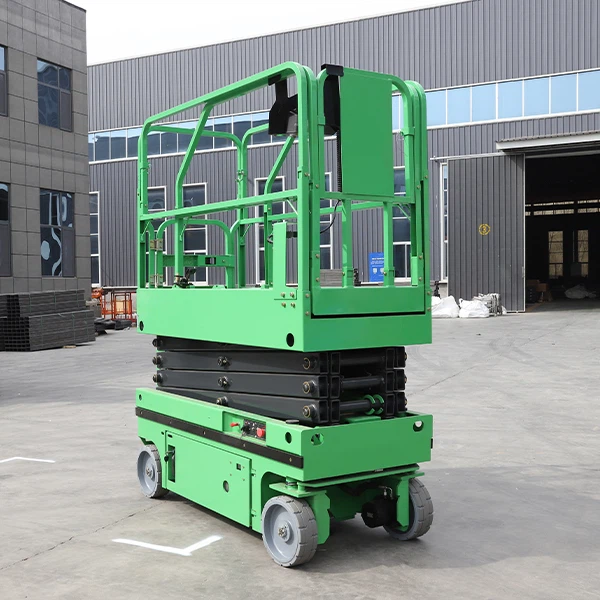

Product Image
Product detail presentation
Battery switch Conrtol handle Pumping station system Pivot pin
Safety barrier Drawbar Tire Outrigger

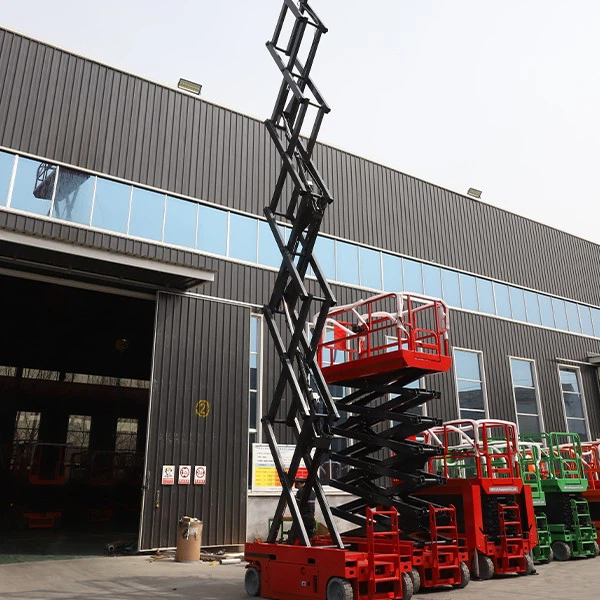

Production workshop
Honor certificate
