Mini Scissor Lift Platform
MRT Mobile scissor lifting platform series products, with flexible movement, smooth lifting and lowering, easy to operate, large load capacity and other characteristics. There are various ways to move, such as manually moving, manually assisted moving, self-propelled, rail electric moving, etc. It is mainly applicable to industrial and mining workshops, enterprises, stations, wharves, buildings, exhibition halls, and other off-air workplaces.
Mini Scissor Lift Platform
MRT Mobile scissor lifting platform series products, with flexible movement, smooth lifting and lowering, easy to operate, large load capacity and other characteristics. There are various ways to move, such as manually moving, manually assisted moving, self-propelled, rail electric moving, etc. It is mainly applicable to industrial and mining workshops, enterprises, stations, wharves, buildings, exhibition halls, and other off-air workplaces.
|
Product name |
mini scissor lift platform |
|
Brand |
MRT |
|
Applicable Industries |
Building Material Shops, Food & Beverage Factory, Food Shop, Food & Beverage Shops |
|
Lift Drive / Actuation |
Electric Motor |
|
Lifting speed |
6-9m/min |
|
Style |
customized |
|
Certificate |
CE ISO |
|
Voltage |
220V/380V/customization |
|
Accept OEM and customization |
|
Product feature
It is light in weight and small in size, and can be easily and flexibly moved to the working point.
The smallest platform size is 1.15m*0.6m, suitable for working in small spaces.
Drawer-type chassis facilitates maintenance.
Automatically displays fault codes to facilitate maintenance.
Self-mobile scissor lift model selection
|
Model Number |
MRT-SS6 |
MRT-SS8 |
MRT-SS10 |
MRT-SS12 |
MRT-SS14 |
|
Max Working Height (m) |
8 |
10 |
12 |
13.8 |
15.7 |
|
Max Platform Height (m) |
6 |
8 |
10 |
11.8 |
13.7 |
|
Platform Size (m) |
2.27×1.12×1.13 |
2.27×1.12×1.13 |
2.27×1.12×1.13 |
2.27×1.12×1.13 |
2.64×1.12×1.13 |
|
Length/Load of Extended Platform |
0.9m/113kg |
0.9m/113kg |
0.9m/113kg |
0.9m/113kg |
0.9m/113kg |
|
Length-Folded (m) |
2.43 |
2.43 |
2.43 |
2.43 |
2.8 |
|
Width-Folded (m) |
1.15 |
1.15 |
1.15 |
1.15 |
1.39 |
|
Height-Folded (m) |
1.71 |
1.85 |
1.97 |
2.10 |
2.10 |
|
Rated Working Load (kg) |
500 |
450 |
320 |
320 |
227 |
|
Travel Speed -Folded (km/h) |
4 |
4 |
4 |
4 |
3.5 |
|
Travel Speed -Raised (km/h) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
|
Battery |
4×6V/225ah |
4×6V/225ah |
4×6V/240ah |
4x12V/300ah |
4x12V/300ah |
|
Weight (kg) |
2060 |
2190 |
2430 |
2900 |
3400 |
|
Accept OEM and customization. |
|||||

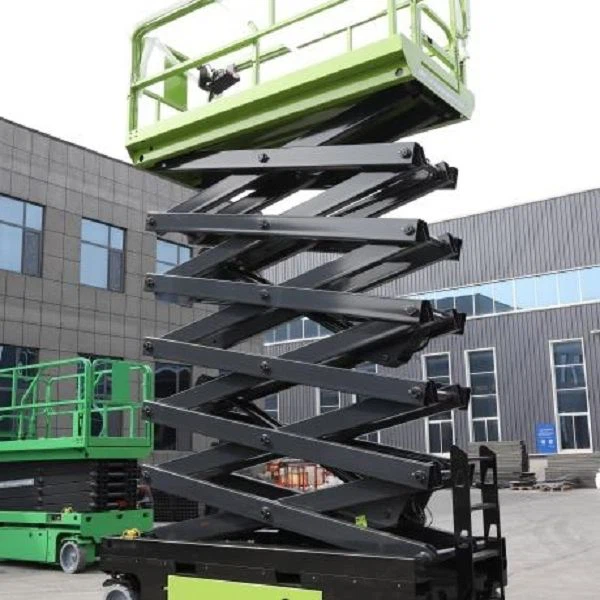

Product Image
Product detail presentation

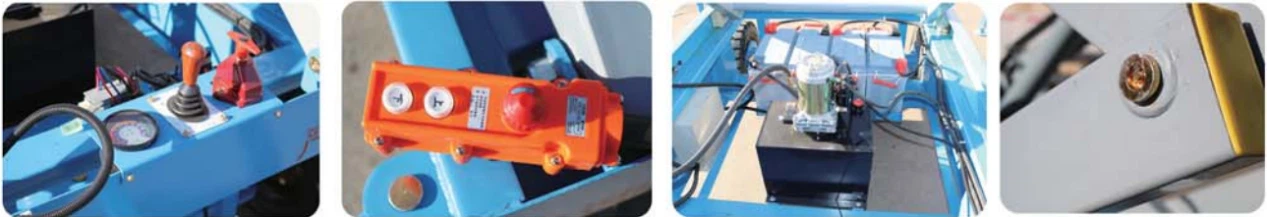

Battery switch Conrtol handle Pumping station system Pivot pin

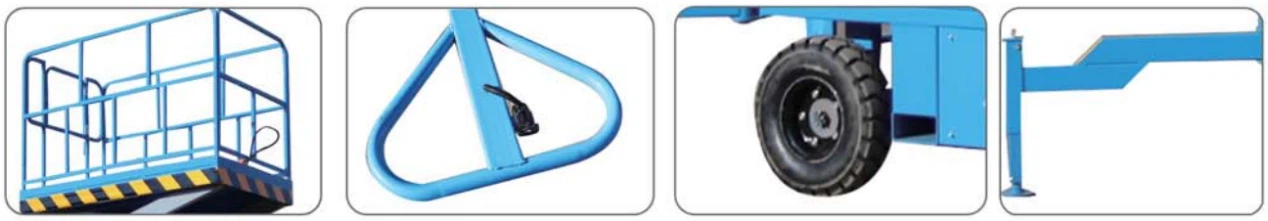

Safety barrier Drawbar Tire Outrigger

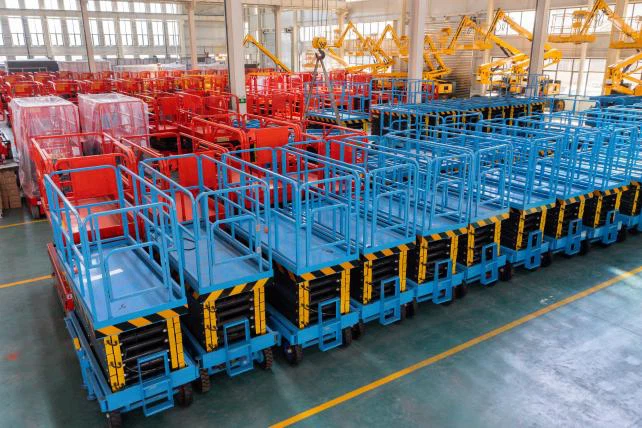

Production workshop
Honor certificate
