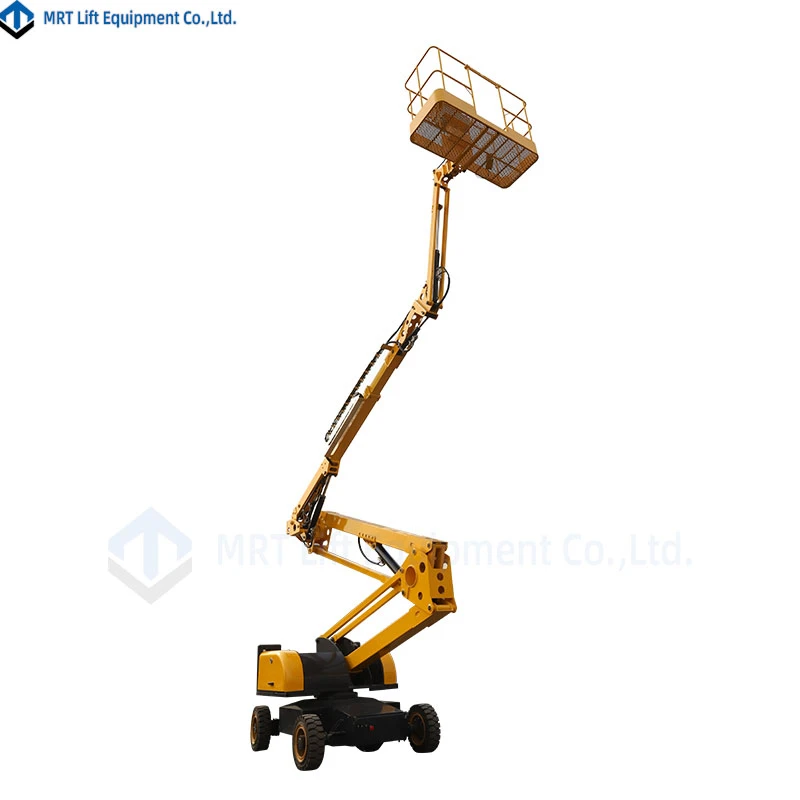

Articulating Boom Lift
MRT Self Propelled Curved Arm Lifting Platform, Diesel engine type, DC motor type or battery power drive can be selected.The lifting arm has two or three sections, and the lifting height ranges from 10 meters to 32 meters. All models travel at full height, extend and lift with curved arms, and rotate the turntable 360°.These compact industrial design chassis, excellent in-situ zero tail swing rotation ability make MRT Self Propelled Curved Arm Lifting Platform your ideal tool for high-altitude operations.
Articulating Boom Lift
MRT Self Propelled Curved Arm Lifting Platform, Diesel engine type, DC motor type or battery power drive can be selected.The lifting arm has two or three sections, and the lifting height ranges from 10 meters to 32 meters. All models travel at full height, extend and lift with curved arms, and rotate the turntable 360°.These compact industrial design chassis, excellent in-situ zero tail swing rotation ability make MRT Self Propelled Curved Arm Lifting Platform your ideal tool for high-altitude operations.
|
Product name |
articulating boom lift |
|
Brand |
MRT |
|
Applicable Industries |
Building Material Shops, Food & Beverage Factory, Food Shop, Food & Beverage Shops |
|
Lift Drive / Actuation |
Electric Motor |
|
Lifting speed |
6-9m/min |
|
Style |
customized |
|
Certificate |
CE ISO |
|
Voltage |
220V/380V/customization |
|
Accept OEM and customization |
|
articulating boom lift model selection
|
Type |
Lifting height (M) |
Equipment Load (Kg) |
Table Size (mm) |
Maximum dimension (mm) |
Self weight (Kg) |
|
MRT-QB0.2-10 |
10 |
200 |
1200*600 |
5200*1650*2350 |
5100 |
|
MRT-QB-0.2-12 |
12 |
200 |
1200*600 |
6200*1780*2350 |
6100 |
|
MRT-QB-0.2-14 |
14 |
200 |
1200*600 |
6900*1780*2350 |
6900 |
|
MRT-QB-0.2-16 |
16 |
200 |
1880*780 |
7100*2040*2200 |
7300 |
|
MRT-QB-0.2-18 |
18 |
200 |
1880*780 |
8200*2400*2450 |
9000 |
|
MRT-QB-0.2-20 |
20 |
200 |
1880*780 |
9100*2400*2450 |
10600 |

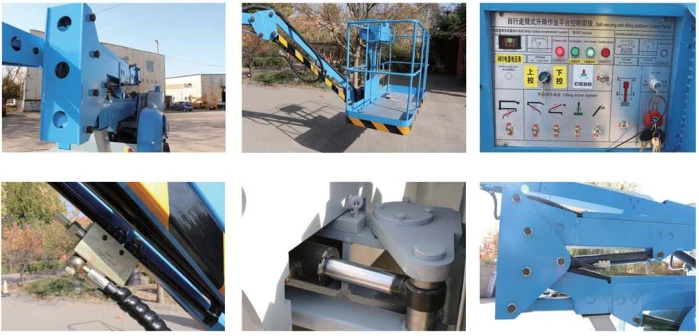

Product Image
