Crawler Scissor Lift
MRT Mobile scissor lifting platform series products, with flexible movement, smooth lifting and lowering, easy to operate, large load capacity and other characteristics. There are various ways to move, such as manually moving, manually assisted moving, self-propelled, rail electric moving, etc. It is mainly applicable to industrial and mining workshops, enterprises, stations, wharves, buildings, exhibition halls, and other off-air workplaces.
Crawler Scissor Lift
MRT Mobile scissor lifting platform series products, with flexible movement, smooth lifting and lowering, easy to operate, large load capacity and other characteristics. There are various ways to move, such as manually moving, manually assisted moving, self-propelled, rail electric moving, etc. It is mainly applicable to industrial and mining workshops, enterprises, stations, wharves, buildings, exhibition halls, and other off-air workplaces.
|
Product name |
crawler scissor lift |
|
Brand |
MRT |
|
Applicable Industries |
Building Material Shops, Food & Beverage Factory, Food Shop, Food & Beverage Shops |
|
Lift Drive / Actuation |
Electric Motor |
|
Lifting speed |
6-9m/min |
|
Style |
customized |
|
Certificate |
CE ISO |
|
Voltage |
220V/380V/customization |
|
Accept OEM and customization |
|
crawler scissor lift lift model selection
|
Model Number |
MRT-SS6 |
MRT-SS8 |
MRT-SS10 |
MRT-SS12 |
MRT-SS14 |
|
Max Working Height (m) |
8 |
10 |
12 |
13.8 |
15.7 |
|
Max Platform Height (m) |
6 |
8 |
10 |
11.8 |
13.7 |
|
Platform Size (m) |
2.27×1.12×1.13 |
2.27×1.12×1.13 |
2.27×1.12×1.13 |
2.27×1.12×1.13 |
2.64×1.12×1.13 |
|
Length/Load of Extended Platform |
0.9m/113kg |
0.9m/113kg |
0.9m/113kg |
0.9m/113kg |
0.9m/113kg |
|
Length-Folded (m) |
2.43 |
2.43 |
2.43 |
2.43 |
2.8 |
|
Width-Folded (m) |
1.15 |
1.15 |
1.15 |
1.15 |
1.39 |
|
Height-Folded (m) |
1.71 |
1.85 |
1.97 |
2.10 |
2.10 |
|
Rated Working Load (kg) |
500 |
450 |
320 |
320 |
227 |
|
Travel Speed -Folded (km/h) |
4 |
4 |
4 |
4 |
3.5 |
|
Travel Speed -Raised (km/h) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
|
Battery |
4×6V/225ah |
4×6V/225ah |
4×6V/240ah |
4x12V/300ah |
4x12V/300ah |
|
Weight (kg) |
2060 |
2190 |
2430 |
2900 |
3400 |
|
Accept OEM and customization. |
|||||

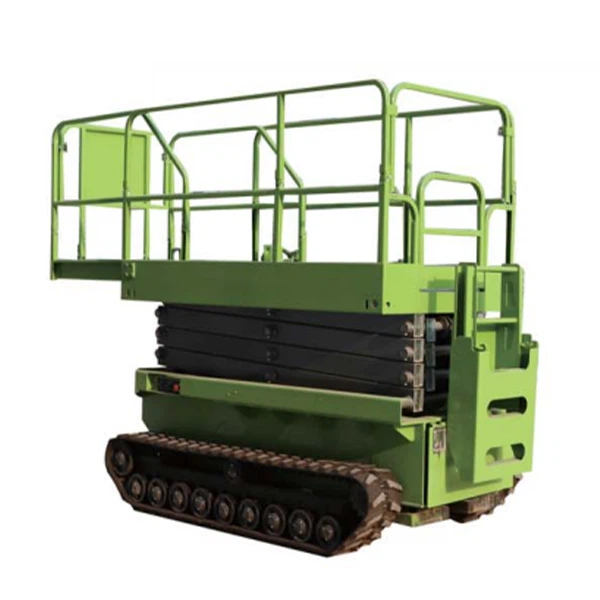

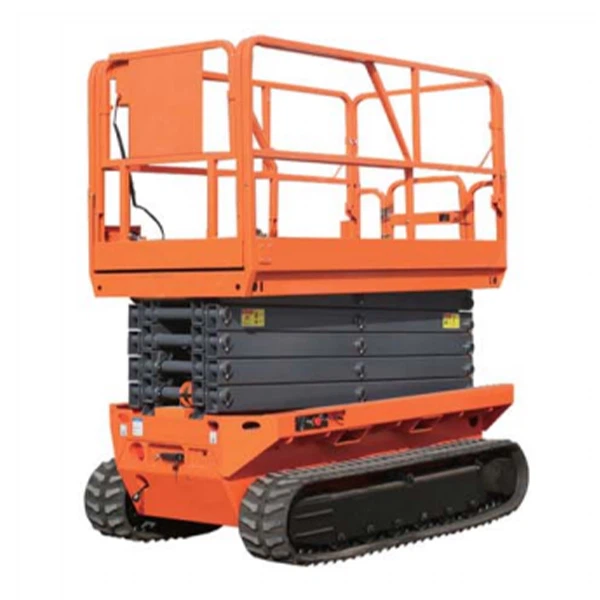

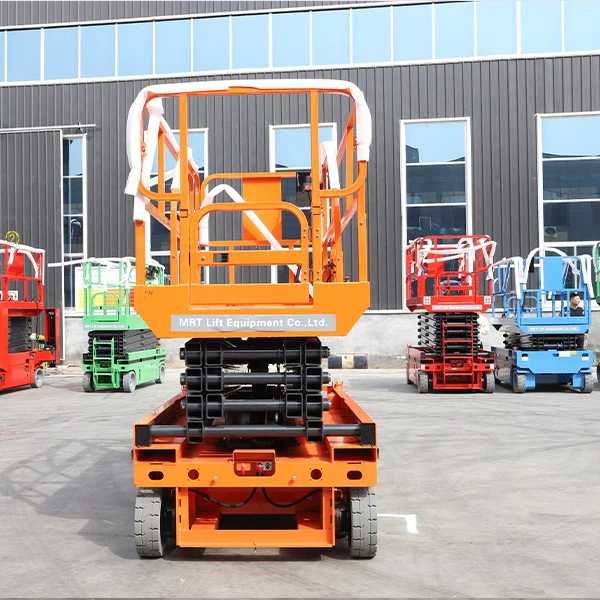

Product Image
Product detail presentation

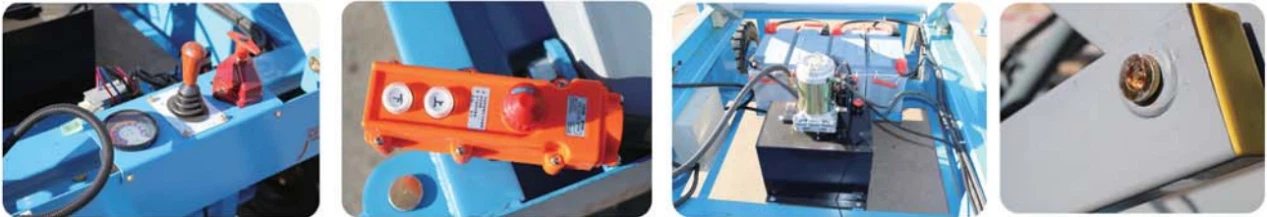

Battery switch Conrtol handle Pumping station system Pivot pin

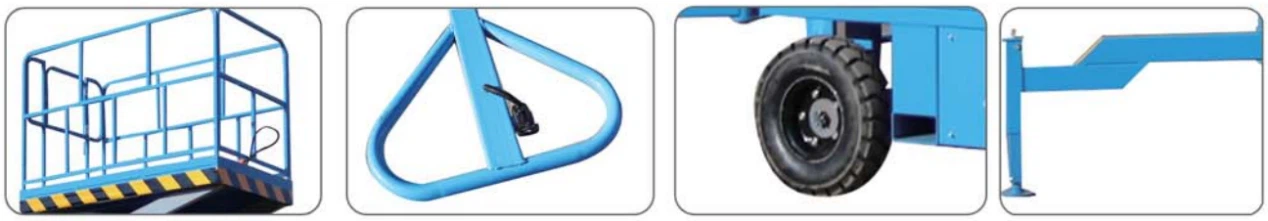

Safety barrier Drawbar Tire Outrigger

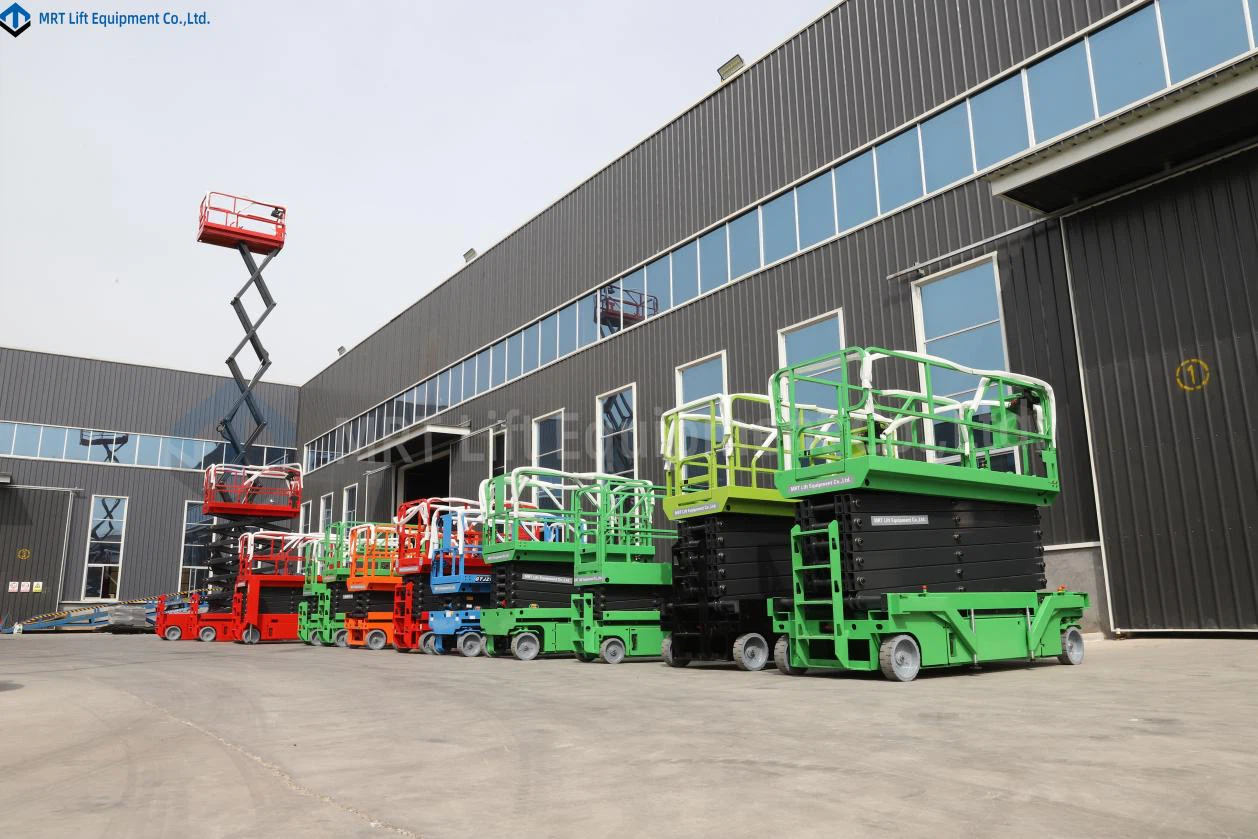

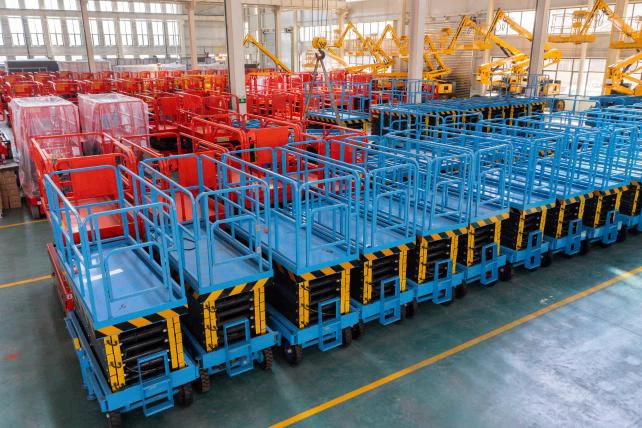

Production workshop
Honor certificate
